Product Description
|
CPU
|
Intel Celeron J4125 (4 core 4 threads, 4M Cache, 2.00GHz, up to 2.70GHz, TDP: 10W)
Intel Celeron N5000 (4 core 4 threads, 4M Cache, 1.10GHz, up to 2.70GHz, TDP: 6W)
|
|
Graphics Card
|
Intel UHD Graphics
|
|
Memory(RAM)
|
1*260-pin SO-DIMM DDR4, Max up to 8GB
|
|
Storage
|
1* mSATA SSD + 1* 2.5 inch SATA SSD / HDD
|
|
Dual Display
|
HDMI+VGA, 4K@ 60Hz, Support for Dual-line Synchronous or Independent display
|
|
Support System
|
Windows10/Windows11, Linux, Ubuntu, CENTOS, etc.
|
|

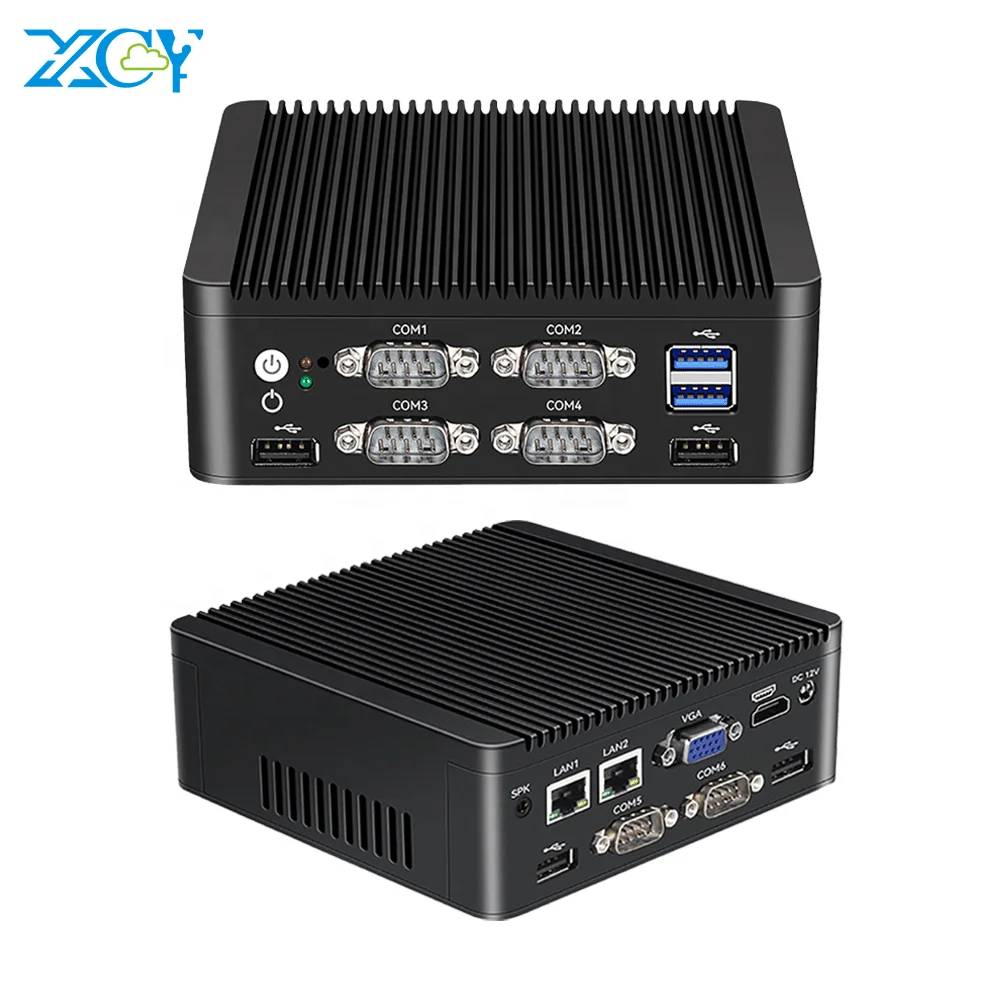

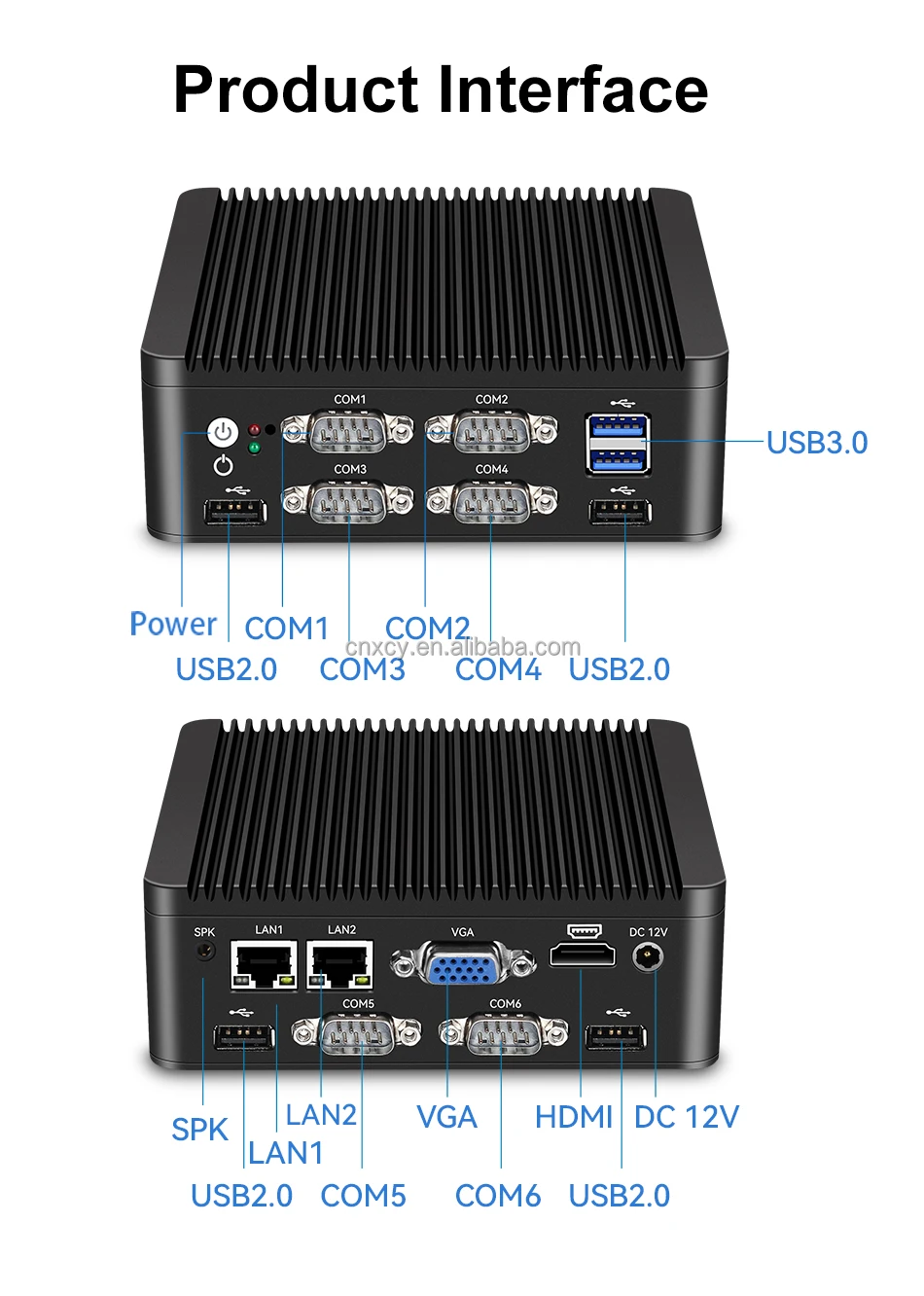

I/O ports
|
2*RJ45

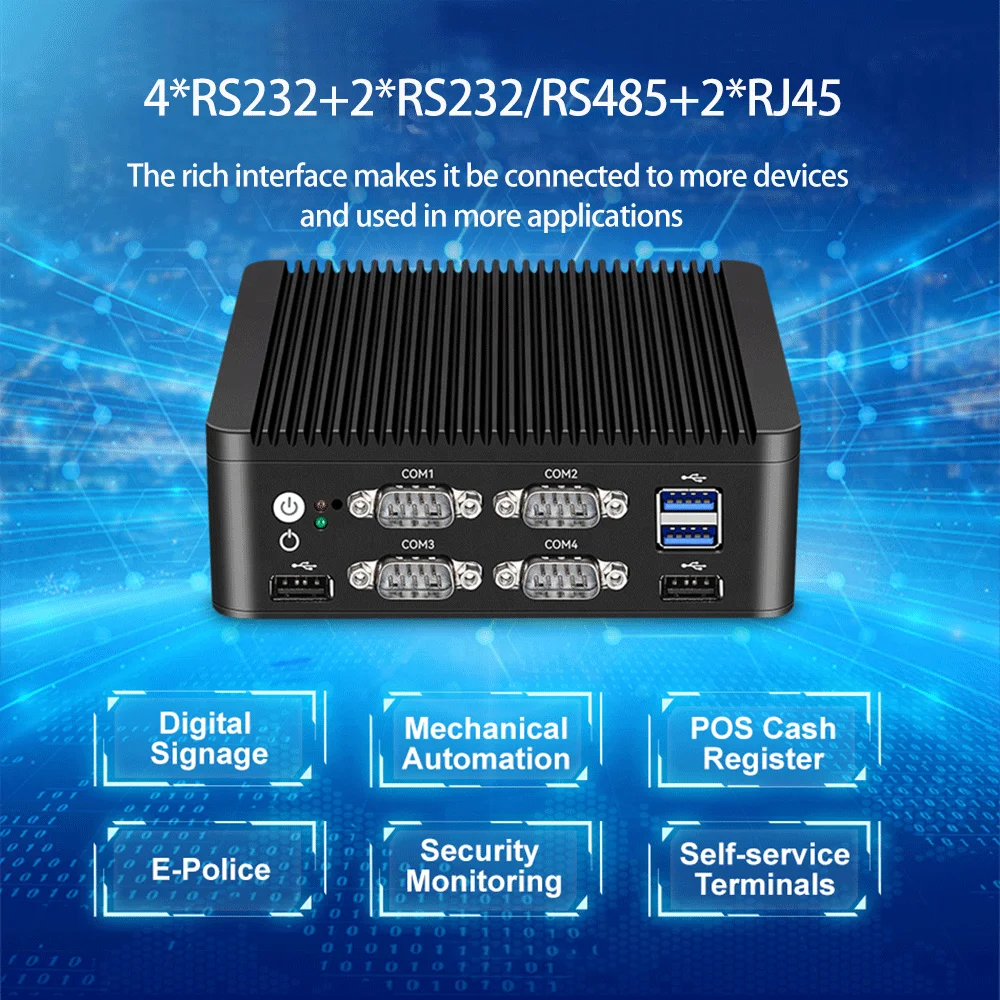

6*COM(2* RS232/RS485+4*RS232)
1*HDMI+1*VGA
2*USB3.0+4*USB2.0
1*SPK
1*DC-IN
|
|
Extention on the motherboard
|
1*Mini-PCIE, 8*GPIO(2*5pin), 1*TPM 2.0 (Optional)
Watchdog Timer Hardware(Software supported),0-255Seconds. |
|
Audio
|
Adopting Realtek ALC662 Chip, supports dual channels, stereo, and line out
|
|
Ethernet port
|
2* RJ45 Intel i225V 2.5GbE
|
|
Wireless
|
1*Mini-PCIE, Support WiFi or 2 in 1 WIFI & BT, 3G/4G LTE (Optional)
|
|
Other
|
Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore AC power loss(Auto Power On)
|
|

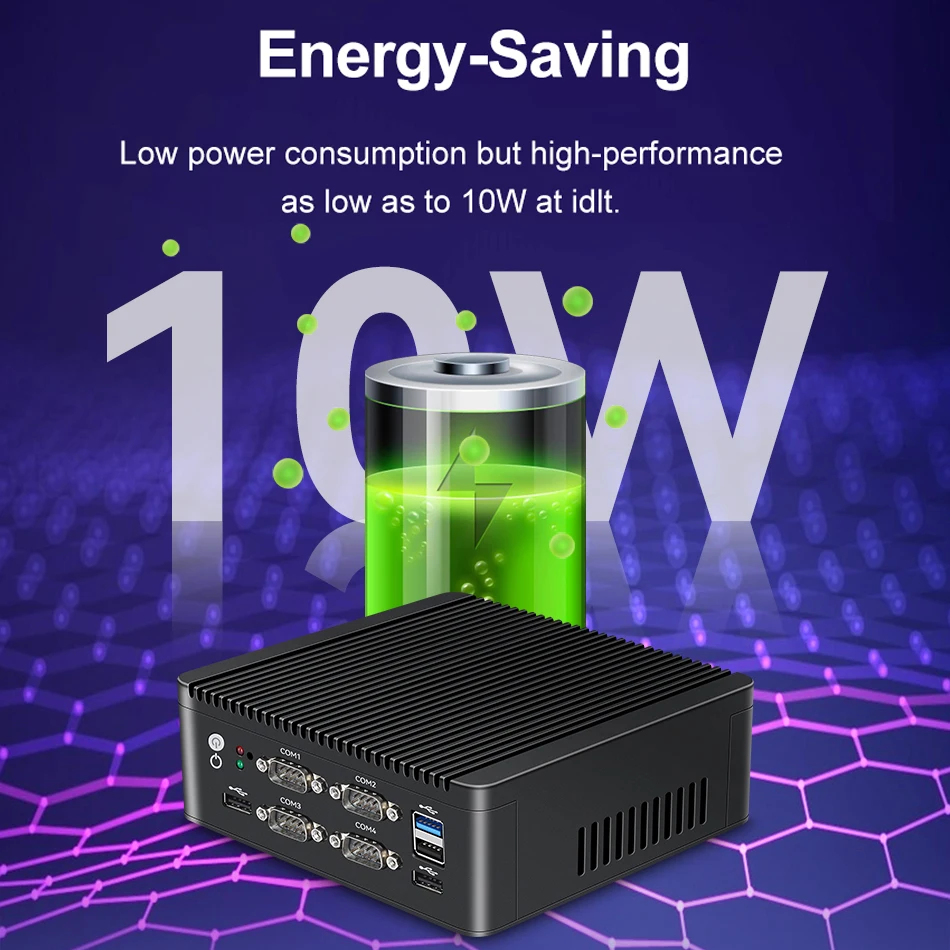

Power Consumption
|
DC-IN 5.5*2.5DC 12V-3A/ 36W or DC 12V-5A/ 60W (AC TO DC, 100~ 240V）
|
|
Customs Supported
|
24V, Din Rail, 6* RS485, GPIO, etc.
|
|

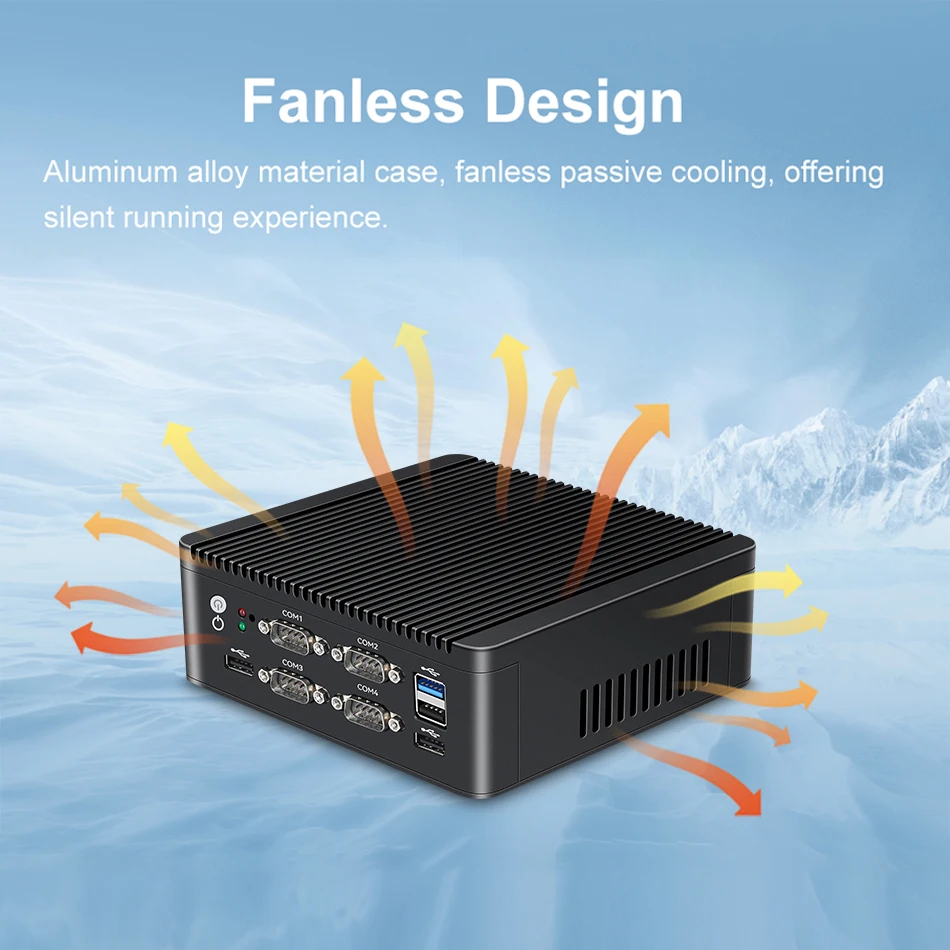

Cooling System
|
Fanless Passive Cooling with Heat Sink
|
|
Mounted
|
Wall-mounted/Desktop/VESA
|
|
Chassis Material
|
Aluminum Alloy
|
|
Operating Temperature
|
-20-60℃
|
|
Storage Temperature
|
-30℃-70℃(15- 35℃ recommended)
|
|
Relative Humidity
|
5%- 95% without condensation
|
|
Dimension
|
133*125*40mm
|
Embedded Computers
Industrial embedded computers offer a high level of performance and low level of power consumption. Used for data computing, remote monitoring, and the integration of hardware and software technologies, industrial PC’s are ideal computing solutions for tight spaces because they are designed with small footprints and multiple I/Os.
Our entire line of industrial PC’s are:
Fanless, which reduces maintenance costs and minimizes downtime.
Sealed, so they are resistant to dust, debris, and fluids.
Noiseless, since they use a passive cooling system instead of fans.
